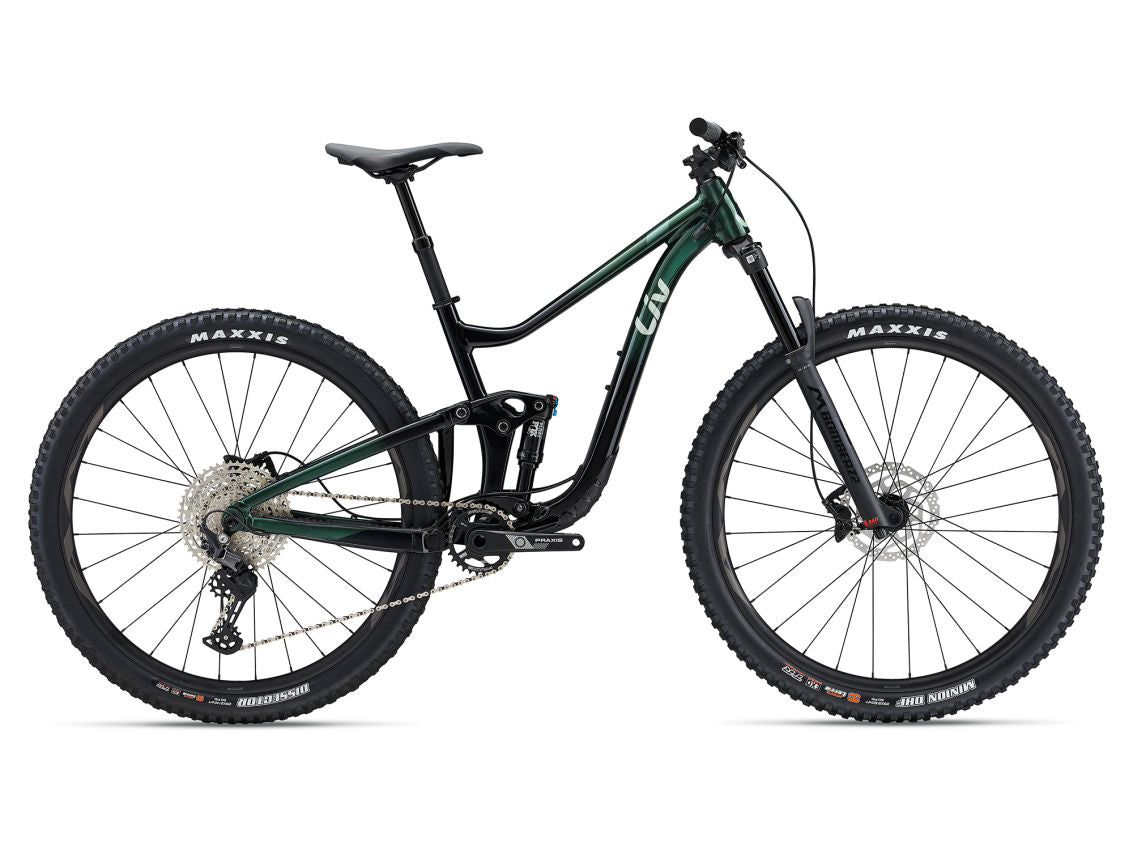

Intrigue 29 1

S, M, L

Kelp Forest

ALUXX SL-grade aluminum front and rear triangles, 125mm Maestro Suspension, flip chip – Maestro

Marzocchi Bomber Z2, 140mm, Rail damper, Boost 15x110, Kabolt, tapered, 44mm offset

Fox Float Performance 185x50, custom tuned for Liv

Giant Contact TR35, alloy, 35mm, 20mm rise S: 760mm, M: 760mm, L: 780mm

Liv Tactal Pro Single Lock-On S: 120mm, M/L: 130mm

Giant Contact SL, 35mm S: 50mm, M: 50mm, L: 50mm

Giant Contact Switch dropper, adjustable, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 140-170mm travel / 30.9 x 499mm

Liv Sylvia

platform

Shimano Deore, 1x12

N/A

Shimano Deore, Shadow +

Shimano BR-MT420, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm

Shimano BL-MT401

Shimano Deore M6100, 10x51

KMC X12

Praxis Cadet, steel chain ring 30t, 52mm chainline S: 170mm, M: 170mm, L: 170mm

Praxis, press fit

Giant AM 29, tubeless ready, sleeve-joint, 30mm inner width

[F] alloy 15x110, sealed bearing, [R] alloy 12x148, sealed bearing

Sapim

[F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless

tubeless prepared, max tire size 2.5", max chainring size 32t

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
